P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring

Brand Name : Cablein

Certification : CE, ROHS, TUV , ETL

Place of Origin : Shenzhen China

MOQ : 100PCS

Price : The price ranges from $1 to $4 USD per pieces

Payment Terms : T/T,Western Union

Supply Ability : Monthly output: 10,000 sets

Delivery Time : 5-8 Working Days

Packaging Details : High Quality export carton

Flame Resistance Rating : UL94 V-0

Related Voltage : 450V

Conductor Material : Copper

Waterproof : IP68

Cable Guage : per your requirement

Colour : black

Withstand Temperature : -40℃~+105℃

Contact Pin : 2Pin

Contact Now

Waterproof Through Connector P20X 2-Pole 1-to-2 Ports Tool-Free Fast Wiring
Specifications

Installation Type: Wire-to-Wire

Connection Type: Quick Connect

Rating: IP68

Pin: 2

Waterproof Ring: 5-9mm 9-12mm

Applicable Wire Gauge: 0.5mm²-2.5mm²

Material: PA66

Datasheet
Parameter Specification
Product Name Waterproof Through Connector P20X 2-Pole 1-to-2 Ports Tool-Free Fast Wiring
Wiring Range 0.5 - 2.5 mm²
Rated Current 16A Max
Operating Voltage 450V Max
Ingress Protection (IP) Rating IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm
Advantages

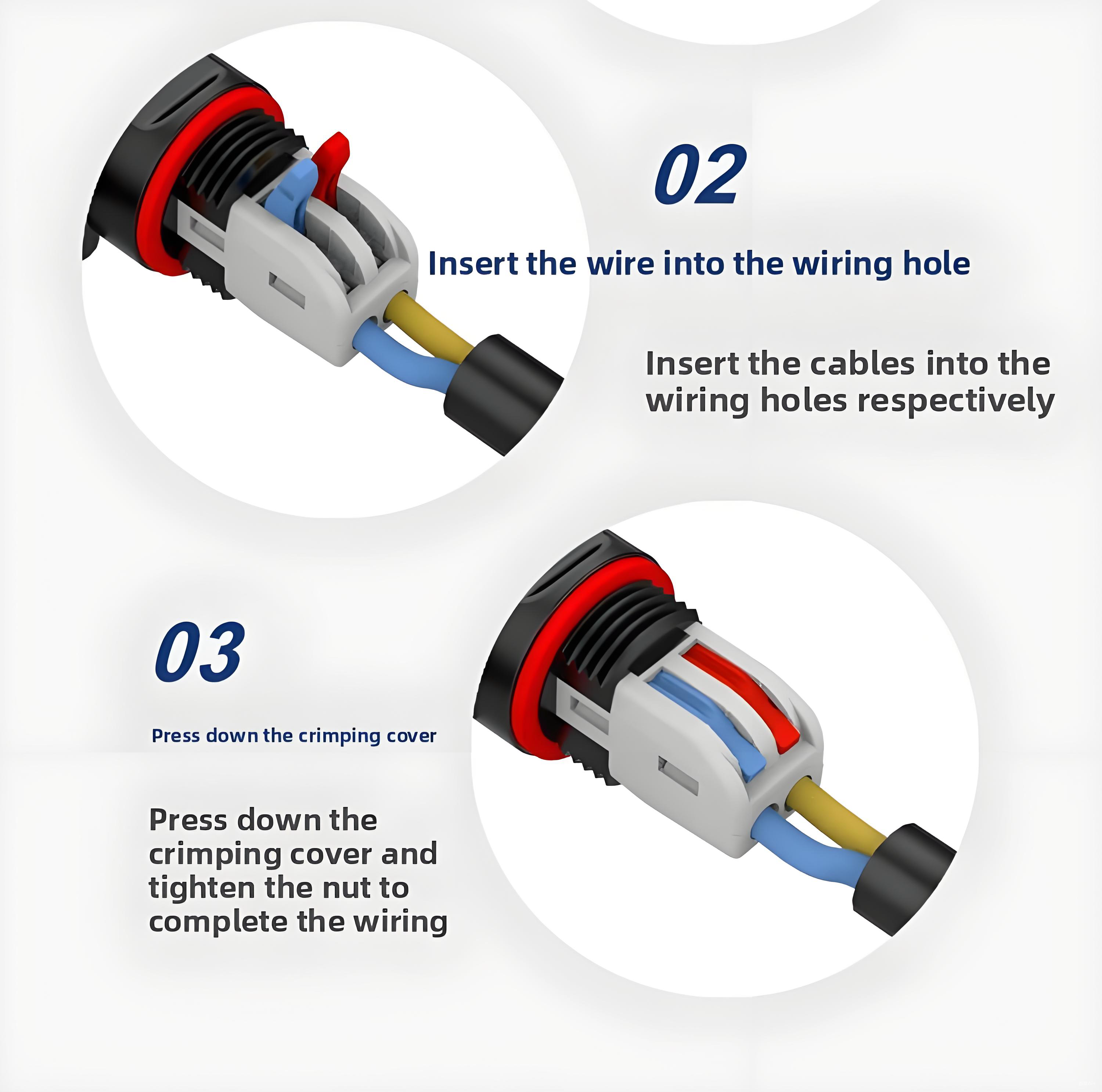

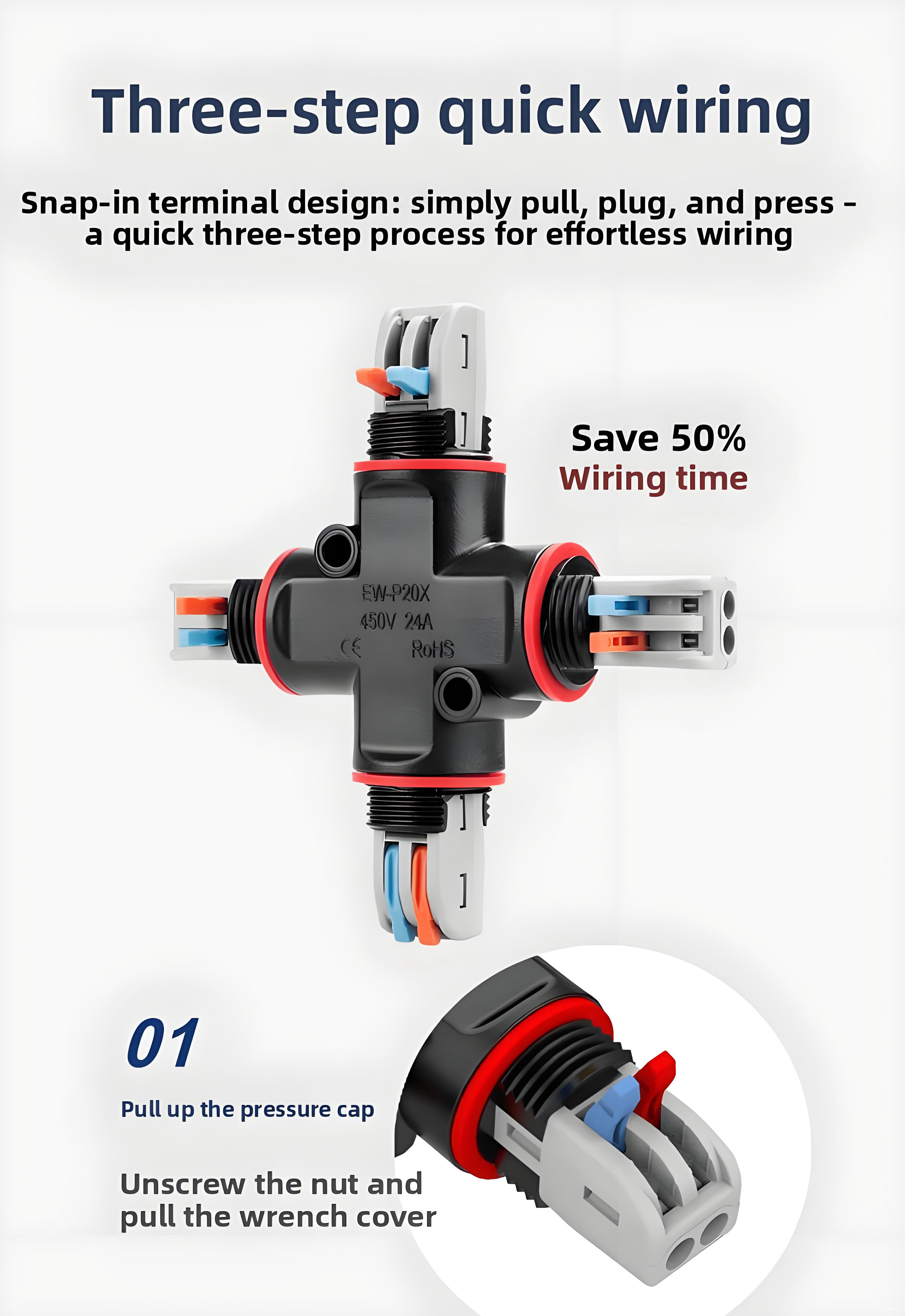

  1. Tool-Free Fast Wiring Enables quick and effortless installation, significantly saving time and labor costs without the need for special tools.
  2. IP68 Waterproof & Dustproof Provides complete protection against dust and long-term water immersion, ensuring reliable performance in harsh outdoor and industrial environments.
  3. Stable 1-to-2 Circuit Branching The through-type design efficiently and securely distributes power or signals from one source to two devices, simplifying system layout.
  4. Robust & Corrosion-Resistant Built with high-quality materials, the connector withstands impact, vibration, and corrosion for long-term durability.
Product Images
P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast WiringP20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast WiringP20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast WiringP20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast WiringP20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring
FAQ
Q: Is special tooling required for wiring?
A: No. It features a tool-free design for quick and easy installation.
Q: What is the waterproof rating?
A: It is rated IP68, ensuring complete protection against dust and water immersion.
Q: How many devices can this connector power?
A: Its 1-to-2 port design allows you to power or connect two devices from a single source.
